Premium Multicore Cable

Cable Made By MOGAMI 2932

Premium Multicore Cable

Premium Multicore Cable

Cable made by Mogami 2932 a high-quality, flexible 8-channel multicore (snake) cable used in professional audio for transparent signal transmission, featuring individually shielded twisted pairs, durable XLPE insulation, and clear color-coding for easy identification, making it ideal for studio recording and live sound setups requiring many channels in one compact cable. Designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.

EXCELLENT NOISE REJECTION

8-Channel design consolidates multiple audio signals into a single, manageable cable. Individually shielded pairs each channel has its own drain wire and spiral copper shield for excellent noise rejection.

TRANSPARENT SOUND

High Flexibility Designed to be rugged but remains easy to handle and route, even at low temperatures. Transparent Sound Known for accuracy, low noise, and excellent dynamics, preferred by many studios.

COMMON USE

Studio Snakes: Connecting drum kits, multi-mic setups, or keyboards to a mixing console. Live Sound: Running multiple microphone or line-level inputs from stage to FOH (Front of House). Digital Audio: Can be used with digital snakes when terminated with appropriate connectors like DB25.

LIFETIME WARRANTY

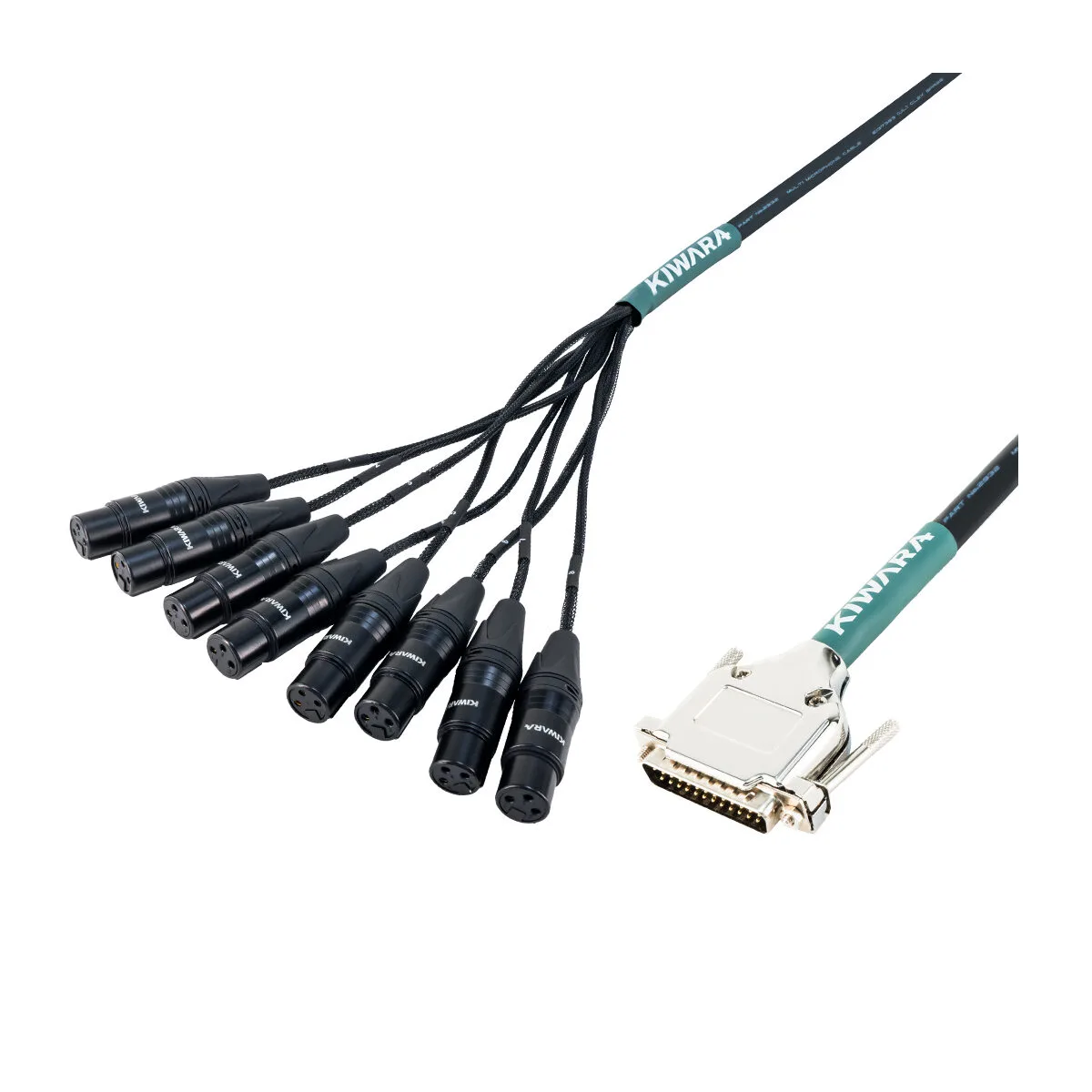

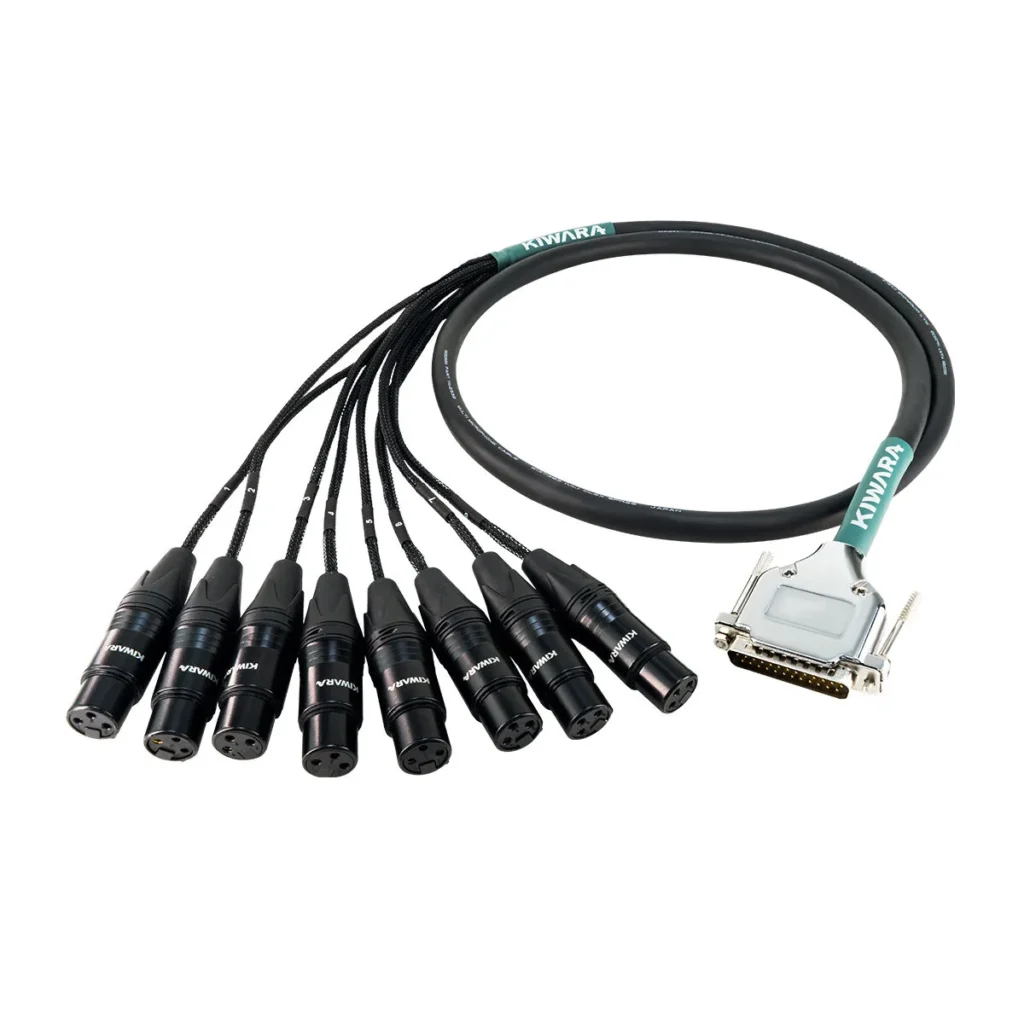

Professionally assembled MOGAMI 2932 cable featuring premium KIWARA connectors. This model includes a KIWARA DB25 connector with a chrome metal cover and gold pin connectors, along with a 3-pole cable connector housed in black metal with gold contacts. Includes a lifetime warranty.

SPECIFICATIONS

Cable type

MOGAMI 2932

Number of Conduct

8

Conduct Size

30/0.08A (0.15mm2) #26AWG

Shield Served

Approx. 60/0.10A Served (spiral ) Shield

Overall Diameter

11.5(0.453")

Capacitance at 1kHz, K0

130pF/m ( 40pF/Ft )

Capacitance at 1kHz, K1

12pF/m ( 3.7pF/Ft )

DB25 Cable

Gold Pin, Chrome metal cover

Connector

Gold Pin Black metal cover

Available lengths

5’, 10’ and 20’

Available Connector

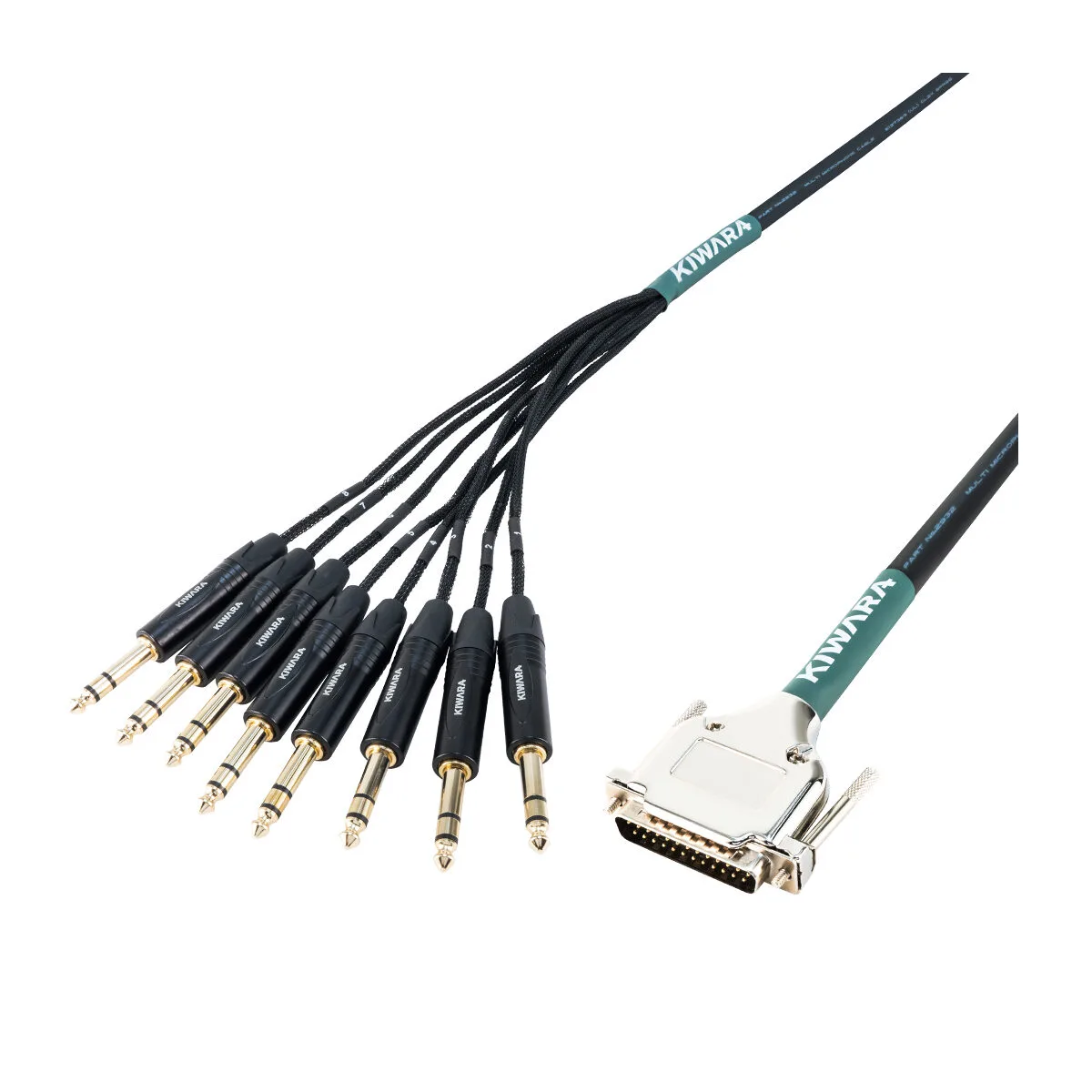

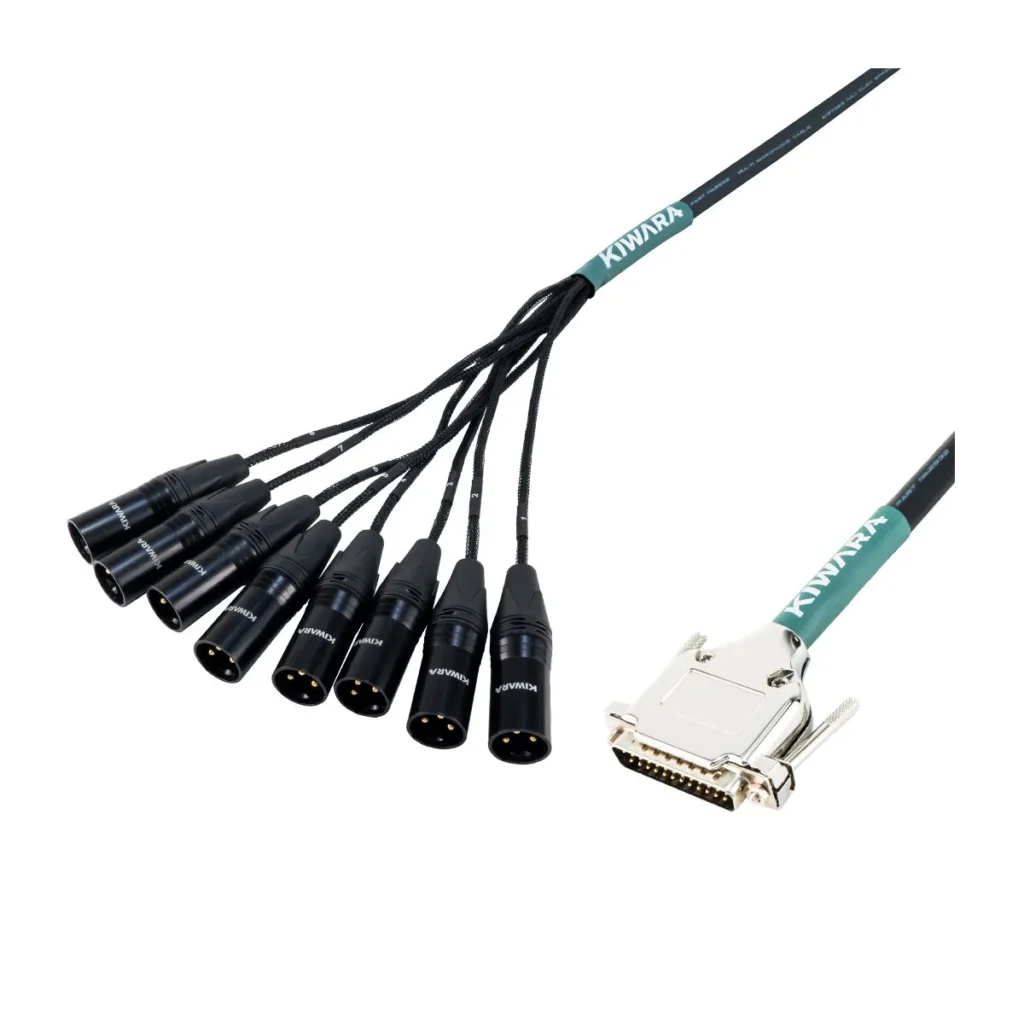

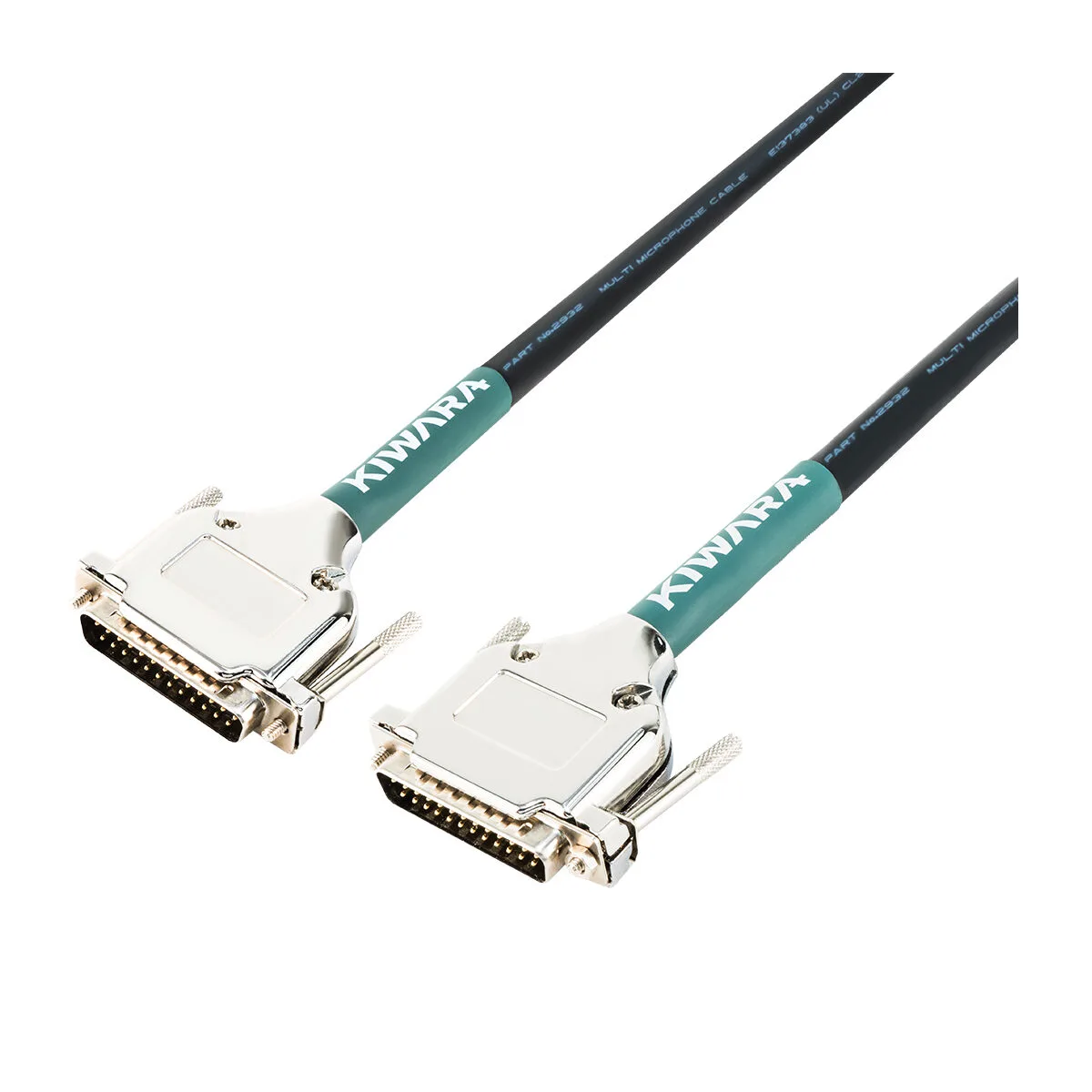

DB25-DB25, DB25-XLRF, DB25-XLTM, DB25-TRS
